5 Reasons Why Tool Length Compensation Is Important

Introduction

In the realm of precision machining, the accuracy of tool positioning plays a pivotal role in achieving desired outcomes. Even the slightest deviation can lead to imperfections, compromising the quality of the workpiece and potentially resulting in costly rework or scrap. To address this challenge, tool length compensation (TLC) emerges as an indispensable technique that ensures precise tool positioning throughout the machining process. This comprehensive guide delves into the intricacies of TLC, unraveling its mechanisms, benefits, and best practices to empower machinists and engineers alike.

Understanding Tool Length Compensation

Tool length compensation, often abbreviated as TLC, is a fundamental concept in computer numerical control (CNC) machining. It entails establishing and maintaining a precise relationship between the programmed tool position and its actual position within the cutting zone. This critical adjustment accounts for variations in tool length, ensuring that the tool tip accurately aligns with the desired cutting path.

The necessity for TLC stems from inherent discrepancies between the theoretical tool length defined in the CAM program and the actual length of the tool mounted in the machine spindle. These discrepancies arise from factors such as tool wear, thermal expansion, and variations in toolholder geometry. Without TLC, these deviations would accumulate, leading to inaccuracies in the final machined dimensions.

TLC plays a pivotal role in ensuring the following:

Dimensional Accuracy:By compensating for tool length variations, TLC guarantees that the machined features conform to the specified dimensions, enhancing the overall precision of the workpiece.
Tool Life Enhancement:By preventing the tool from colliding with the workpiece or overcutting the material, TLC extends tool life, minimizing tool breakage and reducing the frequency of tool changes.
Reduced Rework and Scrap:By ensuring accurate tool positioning, TLC minimizes the occurrence of dimensional errors, thereby reducing the need for rework or scrapping of defective parts.

Types of Tool Length Compensation

Two primary types of tool length compensation are employed in CNC machining:

Absolute Tool Length Compensation:This method involves defining the exact length of each tool relative to a fixed reference point, typically the machine’s datum. The CNC controller utilizes this information to adjust the tool position accordingly, ensuring that the tool tip aligns precisely with the programmed cutting path.
Relative Tool Length Compensation:This approach involves establishing a reference tool and comparing the lengths of other tools to this reference. The CNC controller utilizes these relative length differences to adjust the tool positions accordingly, maintaining accurate tool positioning throughout the machining process.

The choice between absolute and relative tool length compensation depends on the specific machining application and the preferences of the operator. Absolute compensation offers greater precision, while relative compensation simplifies tool setup and management.

How Does Tool Length Compensation Work?

The principle behind tool length compensation lies in the ability of the CNC controller to manipulate the tool position based on the defined compensation values. This process typically involves the following steps:

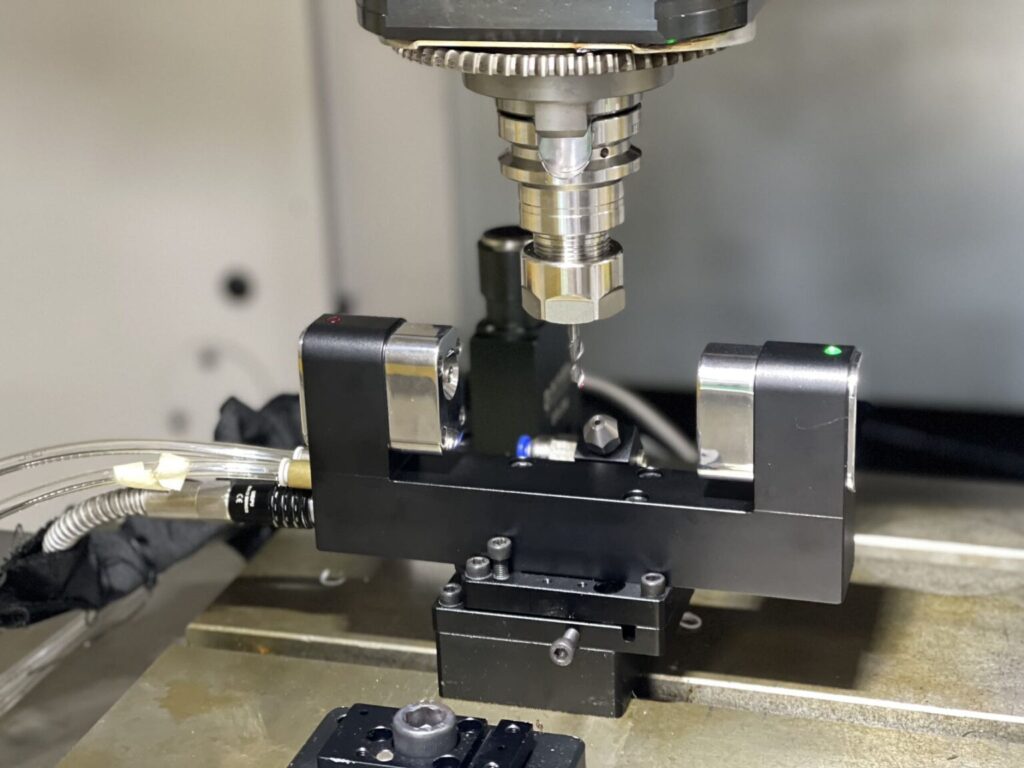

Tool Length Measurement:The tool length is measured using a precise measuring device, such as a touch probe or a laser sensor. The measured length is then entered into the CNC controller.
Compensation Value Calculation:The CNC controller calculates the compensation value based on the measured tool length and the programmed tool position. This value represents the amount by which the tool position needs to be adjusted.
Tool Position Adjustment:The CNC controller applies the calculated compensation value to the programmed tool position, effectively shifting the tool to its actual position within the cutting zone.

This process ensures that the tool tip aligns precisely with the desired cutting path, regardless of any variations in tool length.

Benefits of Implementing Tool Length Compensation

The implementation of tool length compensation offers a multitude of benefits that enhance the efficiency and precision of CNC machining operations:

Improved Accuracy:TLC significantly enhances the dimensional accuracy of machined parts by eliminating errors caused by tool length variations.
Reduced Machining Time:By minimizing tool collisions and overcutting, TLC reduces machining time, leading to increased productivity.
Extended Tool Life:TLC protects tools from damage due to improper positioning, extending tool life and reducing tool replacement costs.
Reduced Rework and Scrap:TLC minimizes dimensional errors, thereby reducing the need for rework or scrapping of defective parts.
Improved Process Consistency:TLC ensures consistent part quality and repeatability across successive machining operations.

Best Practices for Tool Length Compensation

Effective utilization of tool length compensation can be achieved by adhering to the following best practices:

Accurate Tool Length Measurement:Employ precise measuring techniques to ensure the accuracy of tool length measurements.
Regular Compensation Updates:Regularly update tool length compensation values to account for tool wear and other changes.
Establish a Compensation Procedure:Implement a standardized procedure for measuring, entering, and updating tool length compensation values.
Train and Educate Operators:Provide adequate training to operators on the principles and application of tool length compensation.
Utilize Automation Features:Many modern CNC machines offer automated tool length measurement capabilities. Leverage these features to streamline the process and minimize operator error.
Implement Tool Presetting:Consider implementing a tool presetter for offline tool length and diameter measurement. This approach ensures consistent and accurate measurements, independent of the CNC machine setup.
Monitor and Document Changes:Maintain a record of tool length measurements and compensation updates. This documentation facilitates tracking tool wear and identifying potential issues.
Error Handling and Safety:Implement error handling procedures to catch discrepancies in tool length measurements and prevent machining errors. Additionally, prioritize safety protocols to ensure safe tool changes and minimize the risk of operator injury.

Common Questions about Tool Length Compensation

A: How to adjust tool length compensation value?

Adjusting the tool length compensation value typically involves accessing the CNC control panel and navigating to the tool offset menu. The specific steps may vary depending on the CNC machine model and control system. Refer to the machine’s user manual for detailed instructions.

B: Tool Length Compensation and Tool Wear

Tool wear inevitably occurs during machining, gradually reducing the tool’s effective length. To maintain accurate machining, it’s crucial to update the tool length compensation value periodically. This can be done by measuring the worn tool length and entering the new value into the CNC controller. Alternatively, some CNC machines offer automatic wear monitoring features that can adjust the compensation value dynamically.

C: Other Considerations

While tool length compensation plays a vital role in CNC machining, it’s essential to acknowledge other factors that can impact machining accuracy. These include:

Machine Geometry:Variations in machine geometry, such as spindle runout or ball screw wear, can introduce inaccuracies. Regular machine calibration is crucial to minimize these effects.
Material Properties:Thermal expansion of the workpiece due to machining heat can cause dimensional deviations. Utilizing proper machining parameters and coolants helps mitigate this issue.
Tool Selection:Choosing the appropriate tool for the material and machining application is essential for optimal performance and accuracy.

Conclusion

Tool length compensation stands as a cornerstone of CNC machining precision. By understanding its principles, benefits, and best practices, machinists can leverage this powerful technique to achieve consistent part quality, minimize errors, and enhance overall machining efficiency. Through continuous learning and implementing the best practices outlined in this guide, machinists can unlock the full potential of tool length compensation and elevate their CNC machining capabilities to new heights.

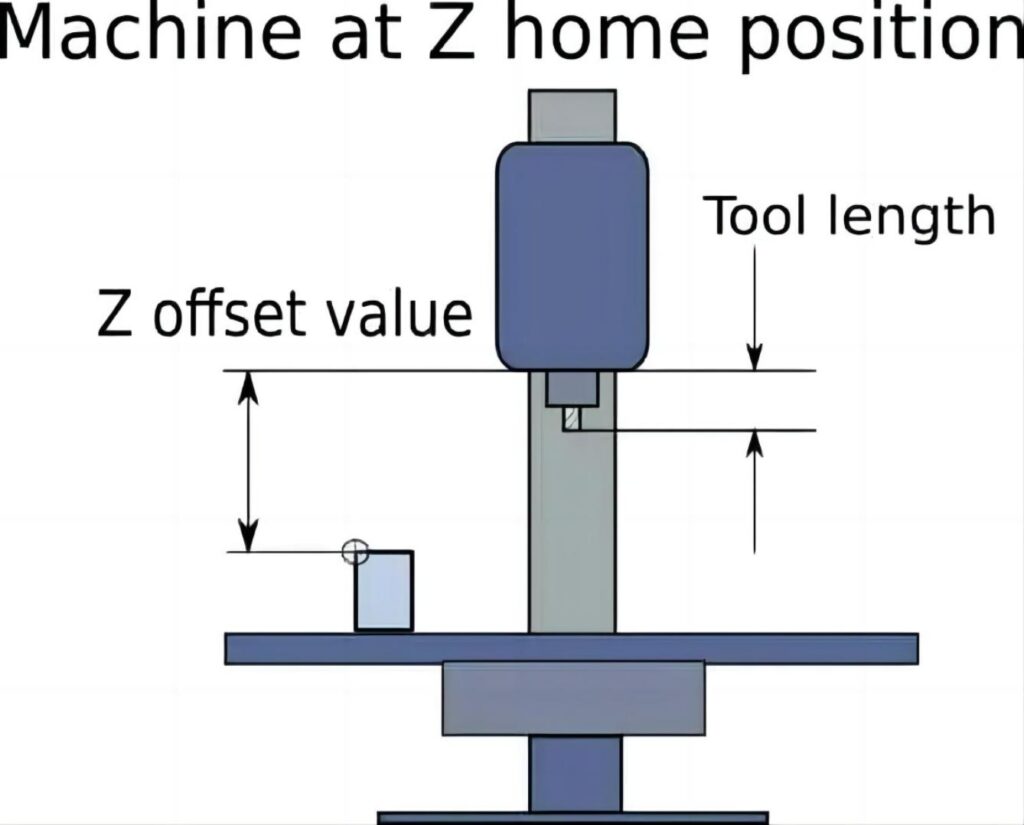

What is Tool Length Compensation?
