Tool Setter CNC DTS200

Compact design with a contact-surface diameter of 20mm

Z-axis Tool Setter

  • Large Stroke
  • High Stability
  • Long Trigger Life
  • Excellent Repeatability
Previous
Next
GET QUOTATION

MODEL

DTS200

Diameter of touch pad

Φ20

Trigger direction

+Z

Output

A/NO

Trigger Protection Distance

5.5mm

Repeatability(2σ)

<0.5um(speed: 50~200mm/min)

Trigger life

>20 million times

Signal transmission mode

Cable

Protection sealing level

IP68

Trigger force

1.9N

Touch pad material

Tungsten carbide

Surface treatment

Grinding4S（mirror grinding）

Contact nominal value

DC24V, Max20mA

Protective tube

1.5m, minimum radius R7mm

LED light

Normal: OFF; active: ON

Features of Tool Setter CNC

Large Stroke

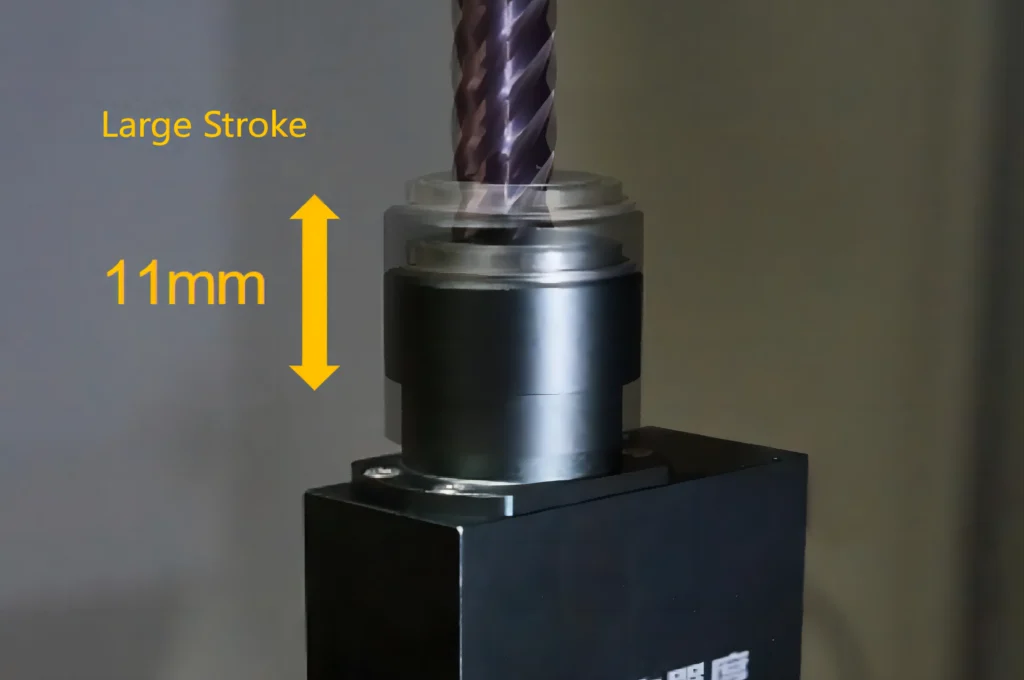

  • Large stroke distance with 11mm; and Trigger protection distance 5.5mm.

LED Light

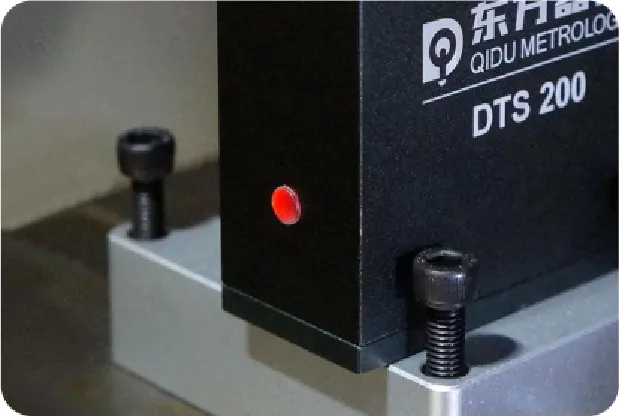

  • The signal status of the tool setter can be monitored visually during the working process.

 Excellent Repeatability

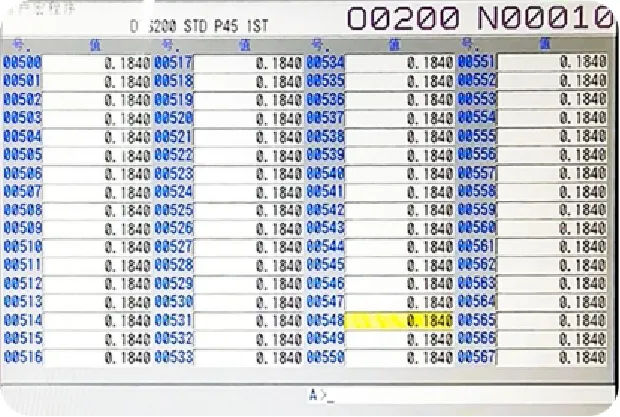

  • DTS200 uses photoelectric sensor trigger technology, whose testing repeatability<0.5um.

Uncomparable Trigger Life

  • > 10million Trigger Lifbe, which is leading in the industry

IP68 Protection Level

  • Tool setter protection level is the highest IP68 rating in the industry.

Excellent Stability

  • Photoelectric technology guarantees excellent stability and useful life.
Large Stroke
Led Light
Excellent Repeatability

Electrical Diagram of Tool Setter CNC

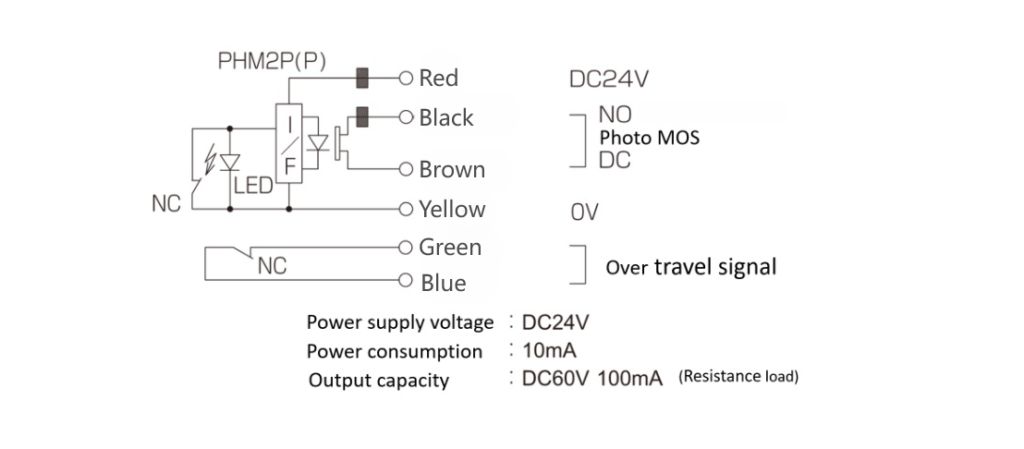

DTS200 Electrical Diagram

Brief Introduction of Tool Setter CNC

DTS200 is a tool settter CNC which is triggered when a tool touches the contact pad. A trigger signal is sent to the machine tool controller via the hard-wired cable and the tool length is automatically calculated.

This tool setter CNC can be used for a variety of on-machine detection, such as tool length, tool breakage, tool wear compensation, and determination of tool offset. It is designed to operate within the machining environment, so it is resistant to swarf or coolant ingress and prevents false triggers due to shocks or vibration.

DTS100 is compatible with a variety of CNC processing equipment, such as drill-tapping machine, engraving and milling machine, high gloss machine, vertical machining center, horizontal machining center, five-axis machining center, gantry machining center, turn- milling complex equipment, non-standard automation equipment, etc.

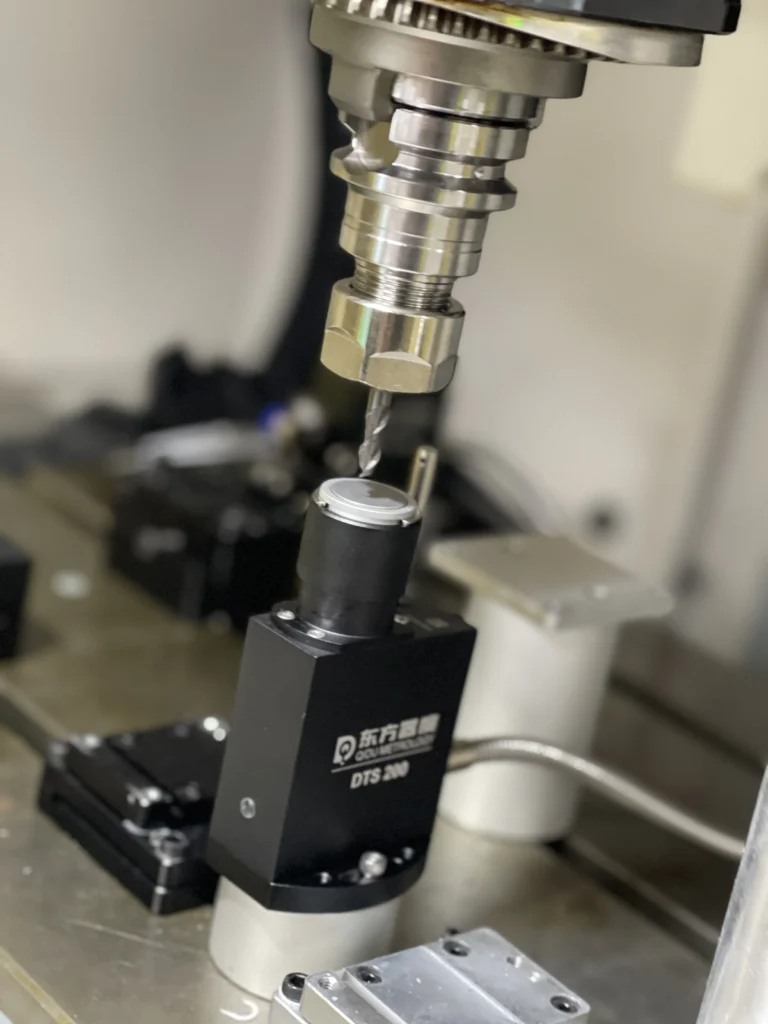

Tool Setter CNC at work

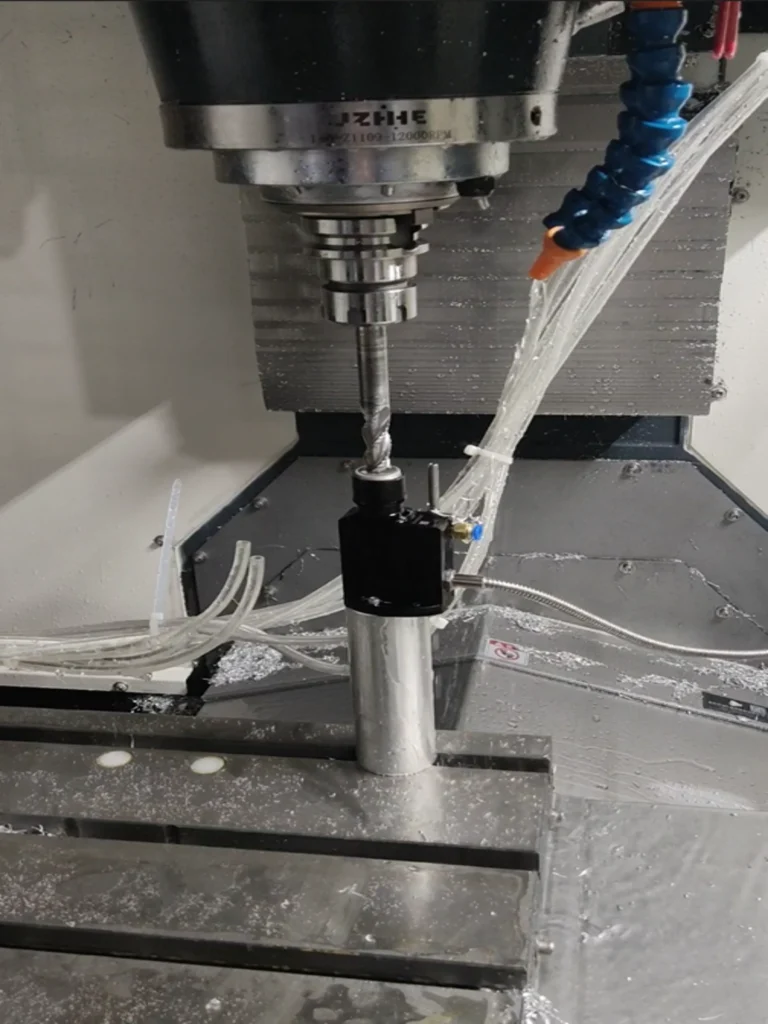

DTS200 at work 3

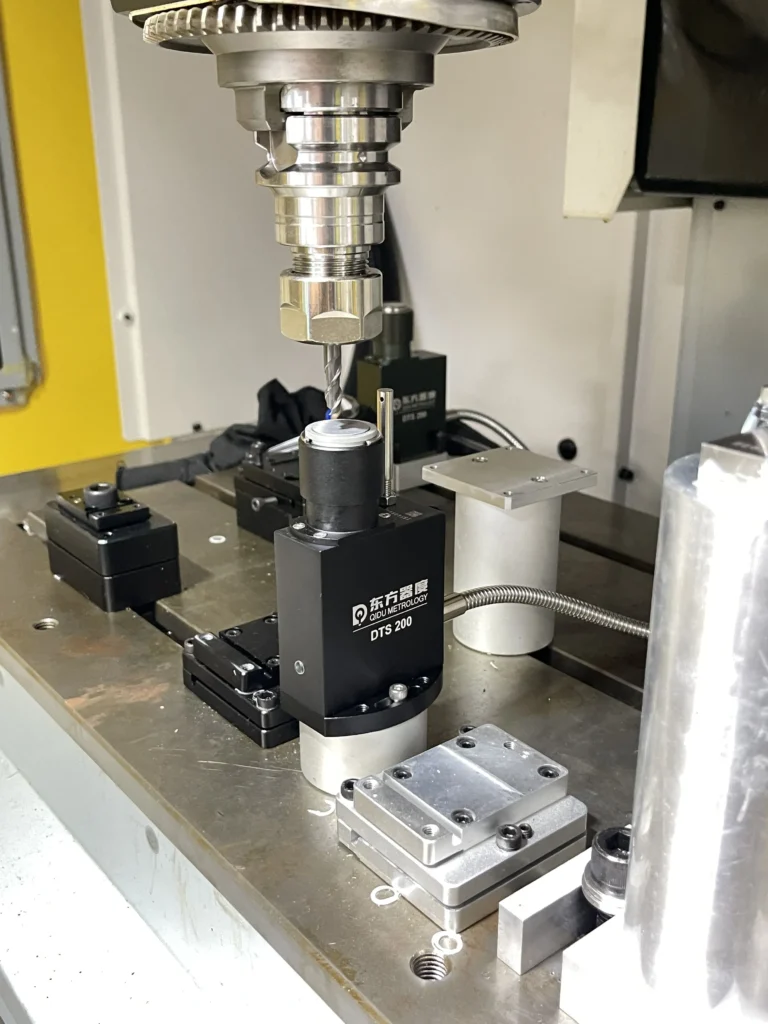

DTS200 at work 2
