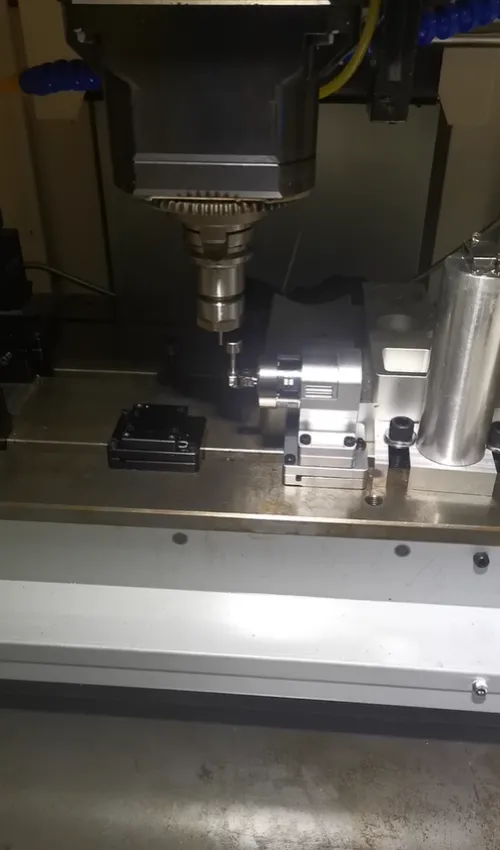

CNC Tool Length Setter DMTS-R

Radio Tool Setter with M Code Electronic Control

Radio Tool Setter for ±X ±Y ＋Z Axis

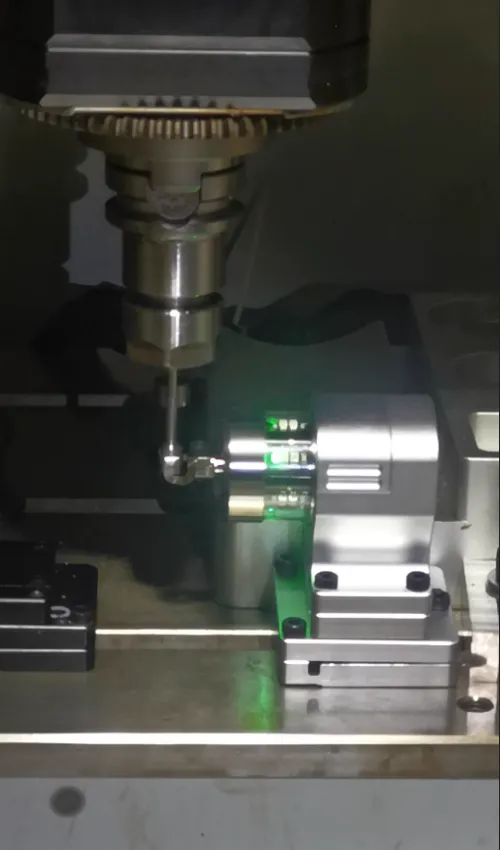

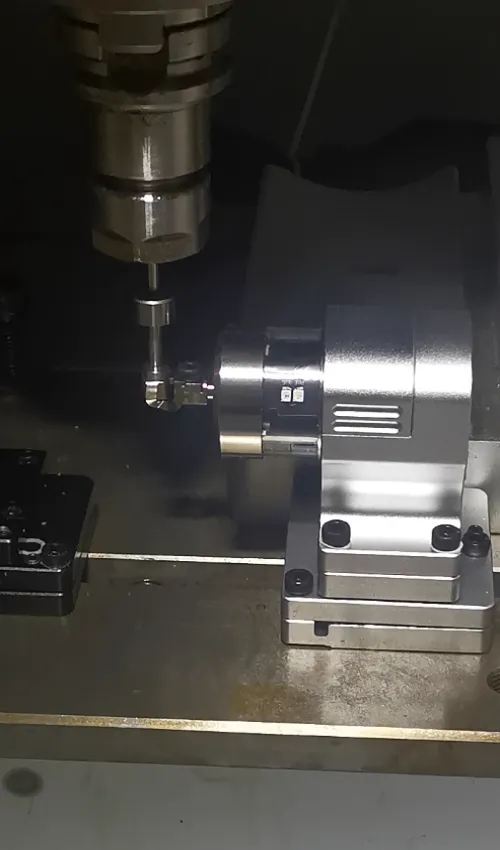

Tool length measurement
Tool diameter measurement
Automatic wear compensation
Tool breakage detection

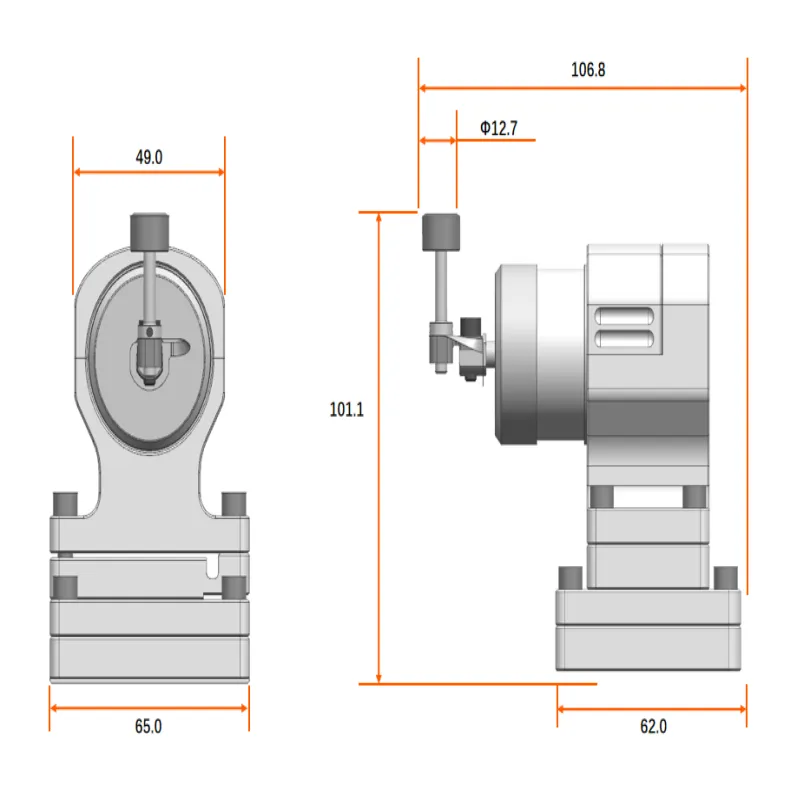

MODEL	DMTS-R
Trigger direction	±X, ±Y,+Z
Output	A: NO
Pre-stroke	None
Stroke	XY plane:+/-15°, Z: 6.2mm
Repeatability precision(2σ)	≤1um (speed: 50-200mm/min)
Trigger life	＞10million times
Sealing	IP68
Trigger force	XY plane: 0.4-0.8N, Z:5.8N
On/Off	M Code
Channels Swift	Automatic Swifting
Signal	Jump/Error Alert/ Low Voltage/ Signal Strength
Signal transmission	Radio
Touch pad material	Super-hard alloy
Surface treatment	Grinding
Contact Nominal Value	DC 24V,≤10mA
Protetive tube	3m, minimum radius 7mm
LED light	Normal: OFF; active: ON

Features of CNC Tool Length Setter

The M code electric control

The M code turns on the probe, and the probe communicates with the receiver in both directions. The probe runs more safely and avoids accidental triggering of the probe in a non-measuring state.

Unlimited channel technology

The industry’s unique unlimited channel technology.There is no interference between channels and channels. Solves the problem of limited channels in the industry and interference between the same channels.

Ultra-low power consumption

Long battery life. The battery is used continuously for more than 2000 hours, which is leading in the industry.

High stability

There is basically no abnormal alarm during the operation of the probe, and the operation of the probe is stable and reliable.

Long triggering life

The structure, material, and process design are designed and verified in full accordance with the triggering life standard of more than 10 million times.

Sealing

IP 68 sealing level, which is the highest level in the industry. Besides, we use the anti-aging imported sealing material to make sure the best quality.

Main Feature of CNC Tool Length Setter

The CNC tool length setter is with radio transmission signal
Automatic measurement of tool length and diameter
Suitable for all kinds of CNC machine tools with rotating workstations or multiple workstations
Suitable for machine-added occasions where the signal transmission distance is far away or there are obstacles

Introduction of DMTS-R Radio Receiver

The CNC tool length setter’s radio receiver is a newly designed and developed measurement product by Qidu Metrology, featuring the following advantages:

Compact structure, wide applicability, and easier installation for enhanced convenience.
Utilizes a universal adjustment mechanism, facilitating alignment with the probing head direction and providing greater flexibility compared to traditional mechanisms.
Installs with a powerful magnet on the machine tool metal component, eliminating the hassle of disassembling screws.
Bi-directional communication with the probing head, allowing real-time monitoring of the probing head’s status.
Supports both normally open and normally closed output modes to accommodate different installation requirements.
Features low battery and error alarm functions for added convenience.
Utilizes a one-to-one pairing with the probing head, providing strong resistance to interference.

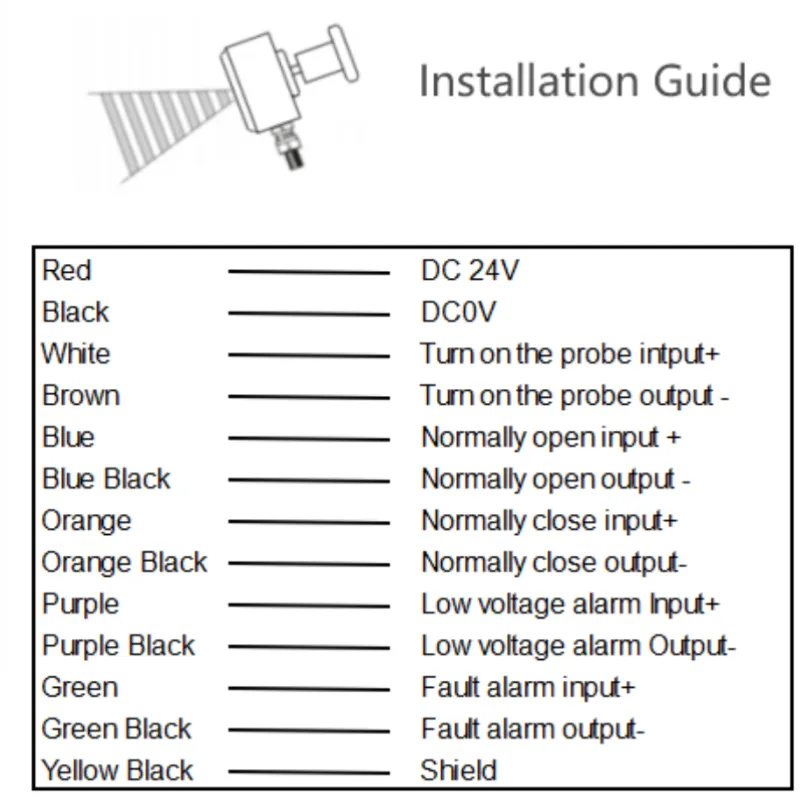

Different cable for different signal to make sure every detail was showed.
