Essential Tips for CMM Probe Calibration in Mastering Precision

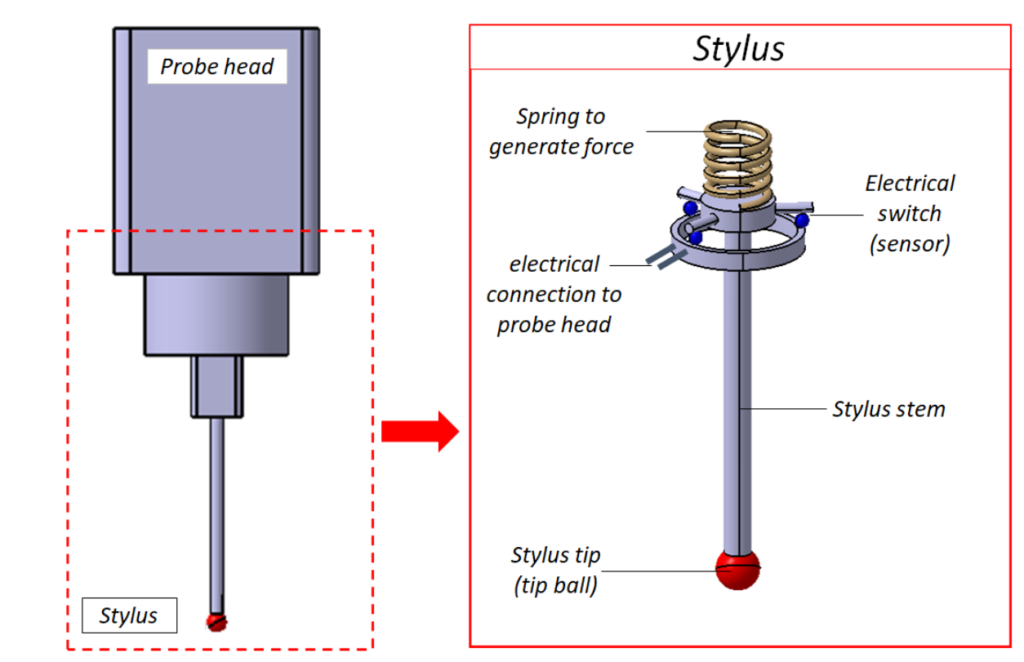

Introduction: CMM Touch Probe-The Unsung Hero of Precision

In the realm of high-precision manufacturing, CMMs reign supreme. These machines meticulously measure and inspect complex parts with unmatched accuracy. But the secret weapon behind a CMM’s prowess lies in its meticulously calibrated probe, the delicate instrument that directly interacts with the part being inspected. To ensure the validity of measurements and uphold the CMM’s reputation for unwavering precision, regular and proper probe calibration is essential.

Why CMM Probe Calibration is Crucial

CMM Probe calibration is the process of verifying and defining the exact dimensions and orientation of the probe relative to the CMM’s coordinate system. This meticulous procedure eliminates any inherent errors or deviations in the probe’s geometry, guaranteeing that the measurements it acquires are accurate and reliable.

Understanding CMM Probe Calibration: What and Why

The Calibration Process: Unveiling the Details

CMM Probe calibration involves utilizing a high-precision reference sphere or other calibration artifacts to establish the probe’s tip diameter, stylus length, and angular offsets. The CMM software meticulously compares the probe’s actual measurements to the known dimensions of the calibration standard, identifying any discrepancies.

Uncalibrated Probes: A Recipe for Disaster

Uncalibrated or improperly calibrated probes can introduce significant errors into CMM measurements, leading to flawed inspection results and potentially costly consequences. These errors can manifest in various forms, including:

• Dimensional inaccuracies:Incorrect probe dimensions can lead to miscalculations of part features, affecting tolerance assessments and potentially causing parts to be scrapped or reworked.
• Alignment errors:Off-axis probe orientation can result in skewed measurements, rendering them unfit for accurate part evaluation.
• Inconsistent results:Uncalibrated probes can yield inconsistent measurements, making it difficult to identify trends or detect subtle variations in part dimensions.

The Power of Calibration: Ensuring Measurement Accuracy

Proper CMM probe calibration directly translates into enhanced measurement accuracy, ensuring that the CMM consistently delivers reliable and trustworthy results. This, in turn, fosters confidence in the inspection process, leading to improved product quality, reduced production costs, and enhanced customer satisfaction.

Optimizing CMM Probe Calibration: Best Practices

Choosing the Right Tools for the Job

The choice of calibration equipment depends on the specific CMM probe type and the required level of precision. Common calibration standards include:

• Calibration spheres:These precisely manufactured spheres provide a reference for determining probe tip diameter and stylus length.
• Master probes:These high-accuracy probes serve as secondary standards, used to calibrate other probes with similar characteristics.
• Step gauges:These precisely dimensioned steps are employed to verify probe alignment and angular offsets.

Frequency and Methods: How Often and How?

The frequency of probe calibration depends on various factors, including the type of probe, usage intensity, environmental conditions, and manufacturer recommendations. Generally, calibration should be performed:

• Regularly:At predetermined intervals, typically weekly or monthly.
• After significant events:Following probe tip replacement, stylus adjustments, or machine incidents.
• Under adverse conditions:In environments prone to contamination, vibration, or extreme temperatures, calibration may be required more frequently.

The Calibration Process: A Step-by-Step Guide

1. Preparation:Ensure the CMM and probe are clean, free of debris, and properly mounted. Clean the calibration sphere and stylus to eliminate contamination.
2. Probe Setup:Define the probe configuration in the CMM software, including tip diameter, stylus length, and angular offsets.
3. Calibration Procedure:Follow the manufacturer’s instructions for the specific calibration method. This may involve touching the probe to the calibration sphere at multiple points and orientations.
4. Data Analysis:Review the calibration results, evaluating any deviations from the expected values. If errors exceed acceptable limits, investigate the cause and recalibrate the probe.

Common Errors and How to Prevent Them

• Contamination:Maintain a clean working environment and regularly clean the probe and calibration sphere to prevent contamination.
• Probe wear:Inspect the probe tip and stylus for wear or damage. Replace worn or damaged probes promptly.
• Environmental factors:Minimize vibrations, temperature fluctuations, and excessive dust in the CMM area.

Advanced Techniques for Enhanced Precision

High-Frequency Calibration: Real-Time Monitoring

For applications demanding real-time or near-real-time probe calibration, high-frequency techniques offer continuous monitoring and adjustment of probe parameters. These methods include:

• Dynamic calibration:Utilizes sensors to track the probe’s motion during measurement, continuously updating calibration parameters.
• On-the-fly calibration:Incorporates calibration routines into the measurement process, ensuring continuous probe accuracy.

Cutting-Edge Technologies for Precise Calibration

• Laser interferometry:Employs lasers to measure probe tip position and stylus length with exceptional precision.
• Vision systems:Utilize high-resolution cameras to capture detailed images of the probe and calibration artifacts, enabling precise measurements.

Troubleshooting and Overcoming Challenges

Common Calibration Issues: Identifying Problems

• Inconsistent measurements:This may indicate probe contamination, wear, or improper calibration.
• Out-of-tolerance errors:Excessive deviations from expected values suggest a problem with the probe, calibration sphere, or calibration procedure.
• Software errors:Check for software updates or consult the CMM manufacturer for troubleshooting assistance.

Addressing Post-Calibration Challenges

• Persistent errors:If calibration fails to resolve measurement issues, investigate other factors such as CMM alignment, environmental conditions, or part fixturing.
• Drifting calibration:Regularly monitor probe calibration stability and recalibrate as needed to maintain accuracy.

Conclusion: The Cornerstone of Precision Metrology

Probe calibration stands as the foundation of precision metrology, ensuring the unwavering accuracy of coordinate measurements. By adhering to best practices, employing advanced techniques, and diligently addressing troubleshooting challenges, quality control personnel can safeguard the integrity of their CMMs, empowering them to deliver consistently reliable and trustworthy results.

FAQ

Q: What is the optimal frequency for CMM probe calibration?

A: The ideal calibration frequency depends on various factors, including probe type, usage intensity, environmental conditions, and manufacturer recommendations. Generally, calibration is recommended weekly or monthly, with more frequent intervals in demanding environments.

Q: How to identify errors during CMM probe calibration?

A: During calibration, the CMM software compares the probe’s measurements to the known dimensions of the calibration standard. If discrepancies exceed acceptable limits, an error is indicated. Investigate the cause and recalibrate the probe.

Q: What is the cost of CMM probe calibration?

A: The cost of CMM probe calibration varies depending on the specific equipment, calibration methods, and service provider. However, regular calibration is a cost-effective investment in ensuring measurement accuracy and preventing costly production errors.

By adhering to the guidelines and recommendations outlined in this comprehensive guide, quality control professionals can harness the power of CMM probe calibration to elevate their precision metrology practices to new heights of accuracy and reliability.

Remember, unwavering precision is not merely an aspiration; it is the cornerstone of quality manufacturing. Through meticulous CMM probe calibration, quality control personnel can empower their CMMs to deliver consistently trustworthy results, safeguarding the integrity of their products and the reputation of their organization.
