Exploring the Benefits of Digital Touch Probes in CNC Machining

In the year 2023, the global CNC machine market achieved a noteworthy valuation of almost $88 billion, with industry experts predicting continued growth in the sector.

As the market expands, competition intensifies, making it crucial to meet customer demands for precision and faster turnaround times. To gain a competitive advantage, a strategic solution involves incorporating a digital touch probe into CNC machining processes.

Tailored for CNC machine tools, these systems enhance the alignment and measurement of workpieces, proving particularly valuable in monitoring tool wear. By integrating a touch probe system, operations can experience an improvement in both quality and productivity, leading to a reduction in scrap production and overall costs.

Understanding Digital Touch Probe CNC

A CNC touch probe falls under the category of probing systems, encompassing various types such as radio, optical, cable, and manual probes. These probes collect data on the position of components or raw materials, enabling adjustments to machine settings, offsets, and position data within CNC control software or CAM models.

Digital touch probe systems employ infrared technology, necessitating an unobstructed “line-of-sight” between the probe and the receiver. They are particularly effective for small to medium-sized machines without complex fixturing.

Functionality of Probing Systems

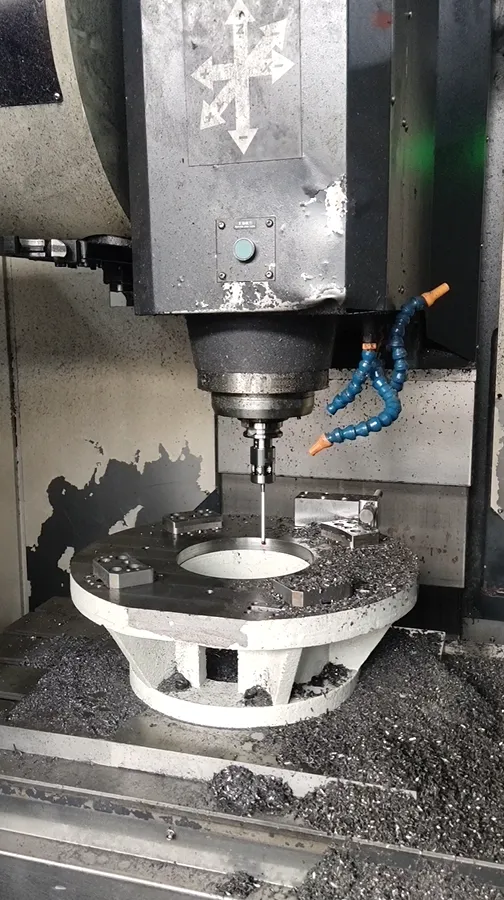

Machine-mounted touch probes, also referred to as touch-trigger probes, operate by making contact with a workpiece or tool to gather data. The optical probe can be automatically inserted by the tool changer or manually by the operator.

Once in position, the machine traverses the probing area, descending in the Z-axis until the probe tip triggers the internal switch in the probe sensor. Using optical infrared technology, the probe sends a signal to the control, recording X, Y, and Z-axis locations. This process is repeated at different positions, with the number of points required depending on the features being measured.

Applications of CNC Touch Probes

Digitizing touch probes find applications in various manufacturing processes, enhancing workpiece alignment, workpiece measurement, and tool measurement:

1. Workpiece Alignment: Touch probes expedite and enhance the accuracy of aligning workpieces parallel to the axes, allowing prompt correction of alignment issues by the CNC machine.

2. Workpiece Measurement: These systems support program-controlled measurement, indicating dimensional accuracy, tool wear, and machine trends during the manufacturing process.

3. Tool Measurement: Touch probes assist in measuring tools on the machine, providing crucial data for tracking tool wear and maintaining machining accuracy.

Benefits of Probing Systems

Implementing a digital touch probe system in operations offers numerous advantages:

1. Improved Quality: On-machine digital touch probes enable real-time checks on features with tight tolerances, facilitating immediate issue resolution or automatic adjustments to meet specified tolerances.

2. Increased Productivity: Digitizing probe CNCs reduce manual setting and measurement time, leading to enhanced production efficiency. Quality control checks can be performed on the machine without removing parts, saving time.

3. Reduced Scrap and Prevented Tool Damage: On-machine digital touch probes ensure precise workpiece and tool positioning, preventing errors that could result in scrapped workpieces or damage to CNC machines or tools.

4. Cost Reduction: Digitizing probe CNCs contribute to cost savings by reducing material wastage, minimizing the need for emergency machine repairs, and optimizing workforce utilization.

Choosing the Right Digital Touch Probe System

Various CNC probing options are available, each suitable for specific probing requirements and machine tools. Digital touch probe systems, with their wireless signal transmission and high accuracy, are ideal for small and medium-sized machines. However, it’s essential to carefully review the specifications of the chosen digitizing probe CNC, considering factors like stylus length and material to ensure accuracy standards are met. Qidu Metrology is professional in different kinds of touch probes, welcome to leave message and let’s discuss together.
