The Power of Optical Touch Trigger Probes

Unveiling the Optical Touch Trigger Probe

Touch trigger probes are specialized tools designed to enhance alignment and measurement capabilities of CNC machines. They come in various forms, including optical, radio, cable, and manual types. Optical touch trigger probes, leveraging the power of light technology, offer a distinct advantage.

These touch trigger probes work by physically contacting the workpiece or tool to gather data. Upon contact, the probe transmits a signal to the CNC control software or CAM models, enabling adjustments to be made. Unlike other probing systems, optical probes utilize infrared technology for communication, requiring a clear line of sight between the probe and the receiver. This makes them particularly well-suited for smaller to medium-sized CNC machines with simpler fixturing configurations.

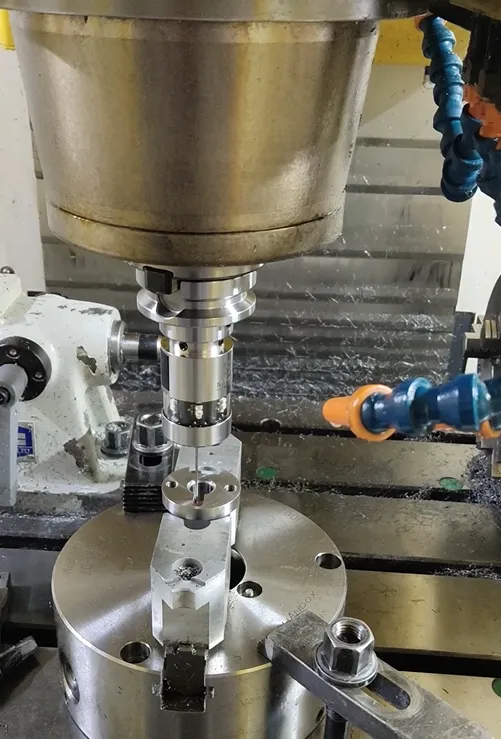

Touch Trigger Probe

The Inner Workings of Optical Probing

The typical operation of an optical touch trigger probe involves mounting it on the CNC machine. The probe can be inserted either automatically by the tool changer or manually by the operator. Once positioned, the machine moves the probe over the designated area, gradually lowering it until the tip makes contact with the workpiece or tool, triggering an internal switch. This triggers the transmission of a signal containing the X, Y, and Z-axis coordinates via infrared technology. This process can be repeated as needed, with the number of points measured depending on the complexity of the feature being probed.

Applications for Enhanced Manufacturing

Optical touch trigger probes offer valuable benefits throughout the manufacturing process. They excel in:

  • Tool Setting and Offset Calibration:  Precise tool positioning is crucial for maintaining machining accuracy.  Optical probes can automate tool setting processes, eliminating manual adjustments and human error. This ensures consistent tool offsets and optimizes cutting performance.
  • In-Process Inspection and Verification:  Throughout the machining process, probes can be used to conduct real-time inspections.  This allows for immediate identification of any dimensional deviations, enabling corrective actions to be taken before significant material or time is wasted.
  • Complex Workpiece Machining:  For intricate workpieces with multiple features,  touch trigger probes can be programmed to follow complex paths, capturing critical dimensional data at various points. This ensures consistent precision and eliminates the need for manual measurements during complex machining operations.
  • First-Article Inspection:  Creating a perfect “first article” is essential for production approval.  Optical probes can be used to thoroughly inspect the first machined part, guaranteeing it adheres to the exact specifications. This reduces the risk of errors propagating throughout the production run.
  • Tool Wear Detection and Monitoring:  Continuous tool wear is inevitable during machining.  Optical probes can be employed to monitor tool wear in real-time.  By measuring tool length and diameter changes, they can predict tool failure and prompt preventative maintenance, preventing part defects and maximizing tool life.
  • Automated Workpiece Loading and Unloading:  For high-volume production environments, automated loading and unloading systems are often used.  Optical probes can be integrated with these systems to ensure accurate workpiece positioning within the machine tool. This minimizes the risk of collisions and ensures smooth operation of the automated system.

The Benefits of Embracing Optical Probing

Integrating optical touch trigger probes into your CNC operations offers a multitude of advantages, including:

  • Enhanced Quality Control: On-machine quality checks facilitated by probes minimize the risk of errors and ensure consistent part quality from the first piece to the last.  By automating critical measurements and eliminating manual inspection errors, probes guarantee adherence to tight tolerances, leading to a reduction in rejects and rework.
  • Increased Productivity: Automating measurement processes with touch trigger probes significantly reduces production time.  The ability to perform on-machine alignment, verification, and tool setting eliminates the need for manual setups and measurements between machining operations.  This translates to faster production cycles and the ability to produce more parts in a shorter timeframe.
  • Reduced Costs: The early detection of errors and precise tool positioning contribute to a significant reduction in costs. Optical probes minimize scrap rates by identifying and addressing potential issues before they impact part quality. Additionally, by preventing tool breakage and optimizing tool life, probes reduce overall tooling expenditures.
  • Improved Process Efficiency: The automation capabilities of optical probes streamline workflows and enhance overall process efficiency. Repetitive tasks like alignment, measurement, and tool setting are handled automatically, freeing up valuable operator time for higher-level activities.  This allows for better allocation of resources and a smoother production flow.
  • Enhanced Operator Safety: Manual probing processes can pose safety risks for operators.  Optical probes eliminate the need for manual intervention in the machining zone, minimizing the potential for accidents and injuries. This promotes a safer working environment for your team.
  • Data-Driven Decision Making: Optical probes generate valuable data on tool wear, workpiece dimensions, and overall process performance. This data can be used for continuous improvement initiatives by identifying areas for optimization and streamlining production processes.  By leveraging data analytics, you can make informed decisions to enhance efficiency and achieve optimal production results.

Choosing the Right Optical Probing System

When selecting an optical probing system for your CNC machine, consider factors like the type of probing required and the specifications of your machine. Optical probes like the Qidu Metrology DOP40 CNC probe system are particularly well-suited for smaller to medium-sized machines due to their exceptional accuracy and repeatability. As an official partner of Pioneer, Qidu Metrology offers integration support for the DOP40 system, guaranteeing optimal performance and compatibility with their CNC mills.

By incorporating optical touch trigger probes into your CNC operations, you can unlock a new level of efficiency, precision, and cost-effectiveness. These powerful tools empower you to meet the ever-increasing demands of the modern manufacturing landscape.
