Top 10 Tool Setters Manufacturers in 2024

In the dynamic landscape of modern manufacturing, efficiency reigns supreme. Every step in the production process needs to be meticulously optimized to achieve maximum output and minimize downtime. This is where tool setters emerge as a critical element in the equation.

The Importance of Tool Setters in the Manufacturing Industry

Tool setters play a vital role in ensuring the accuracy and repeatability of tool setups on CNC machines. These specialized devices streamline the process of setting cutting tools to precise offsets and lengths, eliminating manual adjustments and potential human error.

By incorporating tool setters into your workflow, you can experience a multitude of benefits:

• Enhanced Accuracy:Tool setters guarantee consistent and precise tool positioning, leading to improved product quality and reduced scrap rates.
• Reduced Setup Times:Manual tool setting can be a time-consuming process. Tool setters automate this task, significantly decreasing setup times and boosting overall production efficiency.
• Minimized Downtime:Eliminating the need for manual adjustments translates to less machine downtime and increased productivity.
• Improved Operator Safety:Tool settinig remove the need for operators to manually reach into the machining area, promoting a safer work environment.
• Streamlined Production Processes:The consistent accuracy and repeatability offered by tool setters enable smoother production flows and better predictability.

What are Tool Setters? Definition and Functions in Manufacturing Processes

Tool setters, also known as pre-setters or tool presetting devices, are essentially measuring instruments specifically designed for CNC machines. They function outside the machining environment, allowing operators to precisely set cutting tools offline.

Here’s a breakdown of their key functionalities:

• Tool Length Measurement:Tool setters accurately measure the overall length of a cutting tool from its tip to the reference point used by the CNC machine.
• Tool Diameter Measurement:These devices can also precisely measure the diameter of a cutting tool, ensuring proper clearance and avoiding potential collisions.
• Tool Offset Setting:Tool setting enable operators to set the precise offset values for each tool, determining its position relative to the machine’s coordinate system.
• Data Transfer:Once the tool is set, the tool setting transmits the measured data (length, diameter, and offset) directly to the CNC machine’s control unit. This eliminates manual data entry and reduces the risk of errors.

Importance of Choosing a Reliable Tool Setter Manufacturer

Selecting a reliable tool setter manufacturer is crucial for reaping the full benefits of these devices. The quality and functionality of your tool setter directly impact your production efficiency and overall profitability.

Here’s why choosing the right manufacturer matters:

• Impact on Production Efficiency:High-quality tool setter ensures accurate and repeatable tool settings, leading to faster setups, minimized downtime, and ultimately, increased production output.
• Reduced Maintenance Costs:Reliable tool setter is built to last, requiring minimal maintenance and reducing operational expenses.
• Improved Overall Equipment Effectiveness (OEE):By minimizing downtime and enhancing process accuracy, reliable tool setters contribute to a significant improvement in OEE, a key metric for manufacturing performance.

Criteria for Selecting the Top Tool Setters Manufacturers

With a plethora of tool setter manufacturers in the market, choosing the right one can be a daunting task. Here are some key factors to consider when evaluating potential partners:

• Product Range and Compatibility:Ensure the manufacturer offers a variety of tool setters compatible with your specific CNC machines and tooling systems.
• Accuracy and Repeatability:Prioritize manufacturers known for their commitment to high precision and consistent tool setting capabilities.
• Ease of Use:The tool setter should be user-friendly and intuitive, minimizing operator training time and potential errors.
• Durability and Reliability:Invest in tool setters built with high-quality materials and proven to withstand the demands of your manufacturing environment.
• Calibration Services:Choose a manufacturer that offers regular calibration services to maintain the accuracy of your tool setters over time.
• Customer Support:Reliable customer support is essential for addressing any technical issues or questions that may arise.
• Industry Reputation:Research the manufacturer’s reputation within the industry and consider user reviews and testimonials from other manufacturers.

Evaluating Leading Tool Setters Manufacturers

Here’s a brief overview of some of the leading tool setter manufacturers in the market today:

1. Renishaw:Renowned for their exceptional accuracy and reliability, Renishaw tool setters are trusted by manufacturers worldwide. Their comprehensive range caters to diverse CNC machine applications, ensuring optimal performance.
2. Blum:Blum tool setters are known for their ease of use, intuitive interfaces, and robust construction. Their commitment to quality is evident in their ISO 9001 certification.
3. Marposs:Marposs tool setters are integrated into their broader manufacturing solutions, enabling seamless data transfer and centralized process control.
4. Hexagon:Hexagon tool setters are known for their advanced features, data management capabilities, and integration with their broader manufacturing software suite.
5. Metrol:Metrol tool setters are known for their exceptional accuracy, user-friendly interfaces, and robust construction.

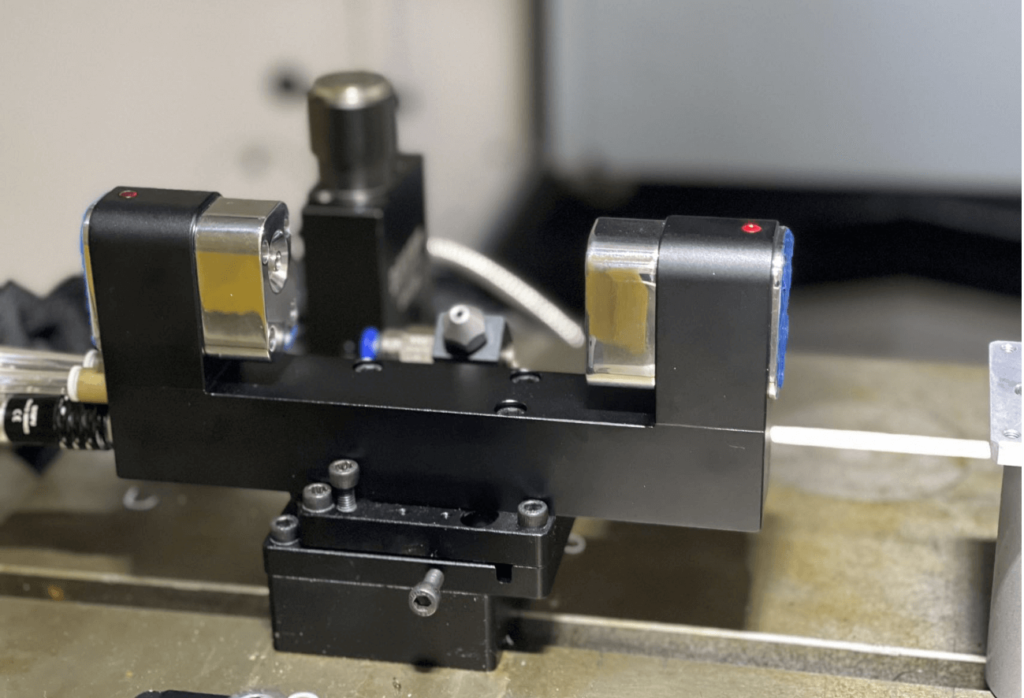

6. Qidu Metrology: Qidu Metrology tool setters offer a balance between affordability and reasonable quality, making them an attractive option for budget-conscious manufacturers. Their commitment to continuous improvement is evident in their investments in research and development. It offers a comprehensive range of tool setters compatible with various CNC machine brands and tooling systems.
7. Mazak:Mazak tool setter is specifically designed for their CNC machines, ensuring optimal compatibility and seamless integration.
8. Zoller:Zoller tool setter is known for their exceptional accuracy, repeatability, and advanced features, catering to demanding manufacturing environments.
9. Makino:Makino tool setter is specifically designed for their machining centers, ensuring optimal compatibility and seamless integration.
10. Mitutoyo:Mitutoyo tool setters are known for their reliability, accuracy, and user-friendly interfaces.

It’s important to note that this is not an exhaustive list, and several other reputable tool setter manufacturers exist. The best choice for your specific needs will depend on your budget, machine compatibility requirements, desired level of accuracy, and preferred functionalities.

Recap of the Importance of Selecting the Right Tool Setter Manufacturer

Choosing the right tool setter manufacturer is an investment that can significantly enhance your manufacturing efficiency and profitability. By prioritizing factors like product compatibility, accuracy, ease of use, and reliable customer support, you can ensure you select a tool setter that seamlessly integrates with your existing workflows and delivers long-term value.

Common Questions about Tool Setter Manufacturers

Here are some frequently asked questions regarding tool setter manufacturers:

1. What are the key features to look for in a tool setter manufacturer?

Look for manufacturers that prioritize:

• High accuracy and repeatability of their tool setters.
• A wide range of tool setters compatible with various CNC machines and tooling systems.
• User-friendly interfaces for ease of operation.
• Durable and reliable construction of their products.
• Availability of calibration services to maintain tool setter accuracy.
• Responsive customer support for technical assistance.

2. How can I determine the quality of tool setters from a manufacturer?

• Research the manufacturer’s industry reputation and user reviews.
• Check for certifications like ISO 9001 that demonstrate a commitment to quality control.
• Compare the manufacturer’s accuracy specifications with your specific requirements.
• Inquire about the materials used in the construction of the tool setters.

3. What are the trends in tool setter manufacturing for 2024?

• The trend is towards increased automation with features like automatic tool loading and unloading.
• Wireless communication capabilities are becoming more common, allowing for seamless data transfer between tool setters and CNC machines.
• Advanced data analysis functionalities are emerging, enabling real-time monitoring of tool wear and performance.
• Improved integration with other manufacturing software and data management systems is a growing focus.

By understanding the vital role of tool setters, selecting a reliable manufacturer, and keeping up with the latest trends, you can leverage these valuable tools to optimize your manufacturing processes and achieve superior production results.
